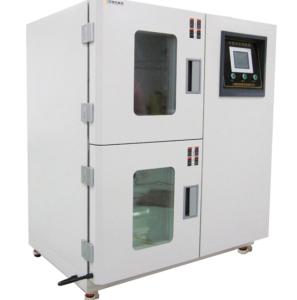

VOC Environmental Test Chamber Test Facility

  • 1
  • 2

Brand Name : BOTO

Model Number : B-VOC

Certification : CE ISO

Place of Origin : China

MOQ : 1set

Price : negotiate

Payment Terms : L/C, T/T, Western Union

Supply Ability : 800 set/year

Delivery Time : 15*25days

Packaging Details : wooden case

Volume : 50-1000L,±2%

Temperature range : 15~70℃,±1℃

Temperature uniformity : ±1℃

Air exchange rate : 0.2-2

Air velocity : 0.1-0.3m/s

Formaldehyde background : ≤0.006 mg/m³

Greater than 0.5um : ≤100 particles/m³

TVOC : ≤0.02 mg/m³

Toluene recovery : ≥80%

Airleakage flow rate : At 1kPa positive pressure, the air leakage rate VL ≤ cabin capacity ×10-3 cubic /min

Noise level : <65dB

Voltage source : 380V,50HZ

Contact Now

VOC Environmental Test Chamber

Features
1. Cabin material: the outer bulkhead adopts thickened color steel plate, the inner tank adopts SUS304 mirror stainless steel, and the insulation system adopts polyurethane insulation material.
2. Air supply system: it is composed of oil-free air pump, dehumidifier, flow controller, etc. The air pump adopts imported air pump with stable quality.
3. Air filtration system: mainly including VOC, formaldehyde filter and particulate membrane filter. High filtration efficiency, convenient replacement and low cost.
4. Humidity control system: the humidity adopts dry and wet mixed humidity control technology. PLC intelligent control, high precision and low energy consumption.
5. Temperature control system: the overall temperature control adopts the air jacket thermal radiation control mode.

Use :
For the detection of VOCs (volatile organic compounds) release from furniture, carpets, toys, automotive interiors, musical instruments, plastic surfaces of outdoor sports venues and their raw materials
Standards compliant:
T/310101002-C03-2016,HJ 571-2010,
GB 18583-2008,GB18584,
ASTM D5116-97,ISO 16000-9-2006 ,
ANSI/BIFMA X7.1-2007,ENV 13419-1
