BOTO Sand Dust Resistance Weather Spraying Rain Test Chamber IP5X / IP6X

Brand Name : BOTO

Certification : ISO

Place of Origin : China

MOQ : 1set

Price : Negotiated

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A, D/P

Supply Ability : 100 Set/Sets per Month

Delivery Time : 1-25 days,to be negotiated

Packaging Details : Wooden case

Power : Electronic

Power supply : 220V 50Hz

Color : Customer Required

Swiping pipe size : R400mm/500mm/600mm

Sample shelf size : D700mm

Dripping board size : 1000*1000mm

Controller : English touch screen controller

Standard : IEC60529

Contact Now

BOTO Sand Dust Resistance Weather Spraying Rain Test Chamber Ip5x/Ip6x

Product Description

This Programmable rubber/ plastic Rain Test Chamber is used to simulating the lighting , auto parts , household appliances and other products in condition of moisture or rain , to see the influence of water to the products. Through this can test the resistance to the rain penetration and moisture proof ability of products.

Standards:

IEC60529 , ISO 20653 , GB2423.38 - 90 , GB5170.20 -90 , GB 4208-93, IPX4 waterproof test methods.

Characteristics:

Programmable rubber/ plastic Rain Test Chamber through a rigorous scientific design, making it can realistically simulate dripping rain , splashing water , water spray and other environment. It uses advanced controlling system and inverter technology , making the rotation angle of the specimen frame, the swing angle of the oscillating bar and the water swing rate can be automatically adjusted.

Product Parameters

Can costomized:

Model BT-IPX34
Turntable size(L*D*H)mm 1300*1300*1300
Outer size(L*D*H)mm 1800*1520*1950
Pendulum size R600mm(Additive matching R400mm,R200mm)
Nozzle size Diameter 0.4mm
Pendulum diameter 15mm
Sample turntable diameter Diameter 600mm(Additive matching R400mm,R200mm)
Rate of flow 0-3L/min
Turntable load bearing 50KG
Turntable height range 550-1000mm
Rotating speed of turntable 1-5r/min (precise adjustable)
Turntable rotation mode Continuous positive / reverse rotation

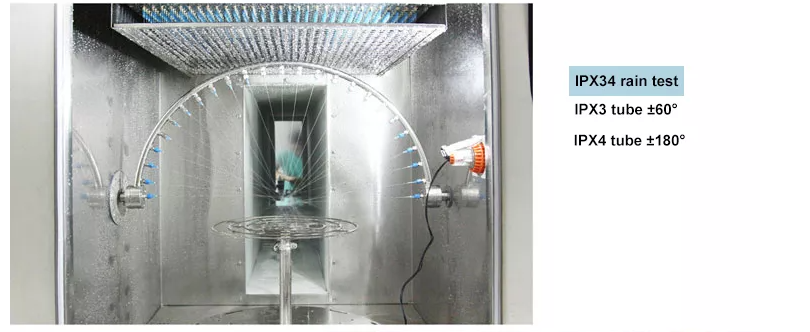

Pendulum angle 120º (IPX3), 350º (IPX4) or custom
Swinging velocity 240 °roundtrip 4S , 720 °roundtrip 12s (precision control) or custom
Device power supply (DPS) 220V
Test sample power supply 220V
Device capacity 1.0KW
Safety protection function Leakage protection, water shortage protection, short circuit protection Etc.

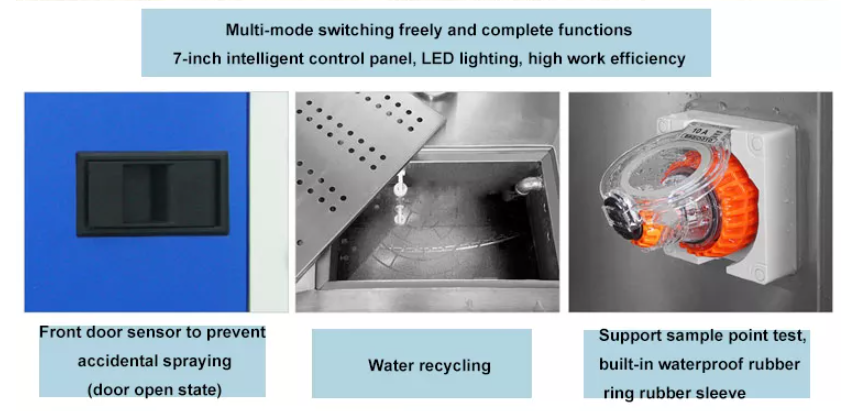

Basic drawing and structure

BOTO Sand Dust Resistance Weather Spraying Rain Test Chamber IP5X / IP6X

BOTO Sand Dust Resistance Weather Spraying Rain Test Chamber IP5X / IP6X

BOTO Sand Dust Resistance Weather Spraying Rain Test Chamber IP5X / IP6X

BOTO Sand Dust Resistance Weather Spraying Rain Test Chamber IP5X / IP6X

BOTO Sand Dust Resistance Weather Spraying Rain Test Chamber IP5X / IP6X

BOTO Sand Dust Resistance Weather Spraying Rain Test Chamber IP5X / IP6X

Our Services

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:

Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2) Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.

3) Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photos to show production process.

After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

4) Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
