Water Waterproof Test Cabinet IPX3 IPX4 IPX5 IPX6 Rain Drop Tester Rain Simulation Chamber Environmental Rain Spray Test

Name: Water Waterproof Test Cabinet IPX3 IPX4 IPX5 IPX6 Rain Drop Tester Rain Simulation Chamber Environmental Rain Spray Test
Brand: BOTO
Price: 1 USD

Brand Name : BOTO

Model Number : BT-IPX12-800

Certification : CE ISO

Place of Origin : China

MOQ : 1set

Price : Negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 Set/Sets per Month

Delivery Time : 1-25 days,to be negotiated

Packaging Details : Wooden case

Power : Electronic

Drop rain area : 400mm x 400mm (customizable)

Inner box size : 800*800*800MM

Diameter of turntable : 350 mm

The drip aperture : 0.4mm

Rainfall : 1-5mm/Min(±0.5mm/min)

Turntable bearing capacity : 50KG

Turntable speed : 1 r/min

The turntable can be tilted : 0° or 15°

Test time : 0-999 min

Contact Now

Water waterproof Test Cabinet IPX3 IPX4 IPX5 IPX6 Rain Drop Tester Rain Simulation Chamber Environmental Rain Spray Test

Product Description

Item	Specification
Internal chamber size	800Wx800Dx800Hmm
External chamber size	1200Wx900Dx3300Hmm
IP Code	IPX5	IPX6
Internal diameter of spray nozzle	6.3mm	12.5mm
Delivery rate	12.5l/min±5%	100l/min±5%
Core of the substantial stream	Circle of approximately 40mm diameter at 2.5m distance from nozzle	Circle of approximately 120mm diameter at 2.5m distance from nozzle
Chamber material	Internal: SUS304 stainless steel, external: stainless steel
Test duration per square meter of enclosure surface area likely to be sprayed	1 min
Minimum test duration	3 min
Controller	PLC touch screen
Turntable	Diameter 300mm, rotate speed 3±1R/min
Distance from nozzle to enclosure surface	Between 2.5m and 3m

Rain Spray Testing Instrument
It is design according to the standard of IP6 & UL 1598, (shell protection grade).This machine is widely used in the lamps and electrical and electronic product certification testing institutions and for testing the waterproof of electrical and electronic products of shell protection level.

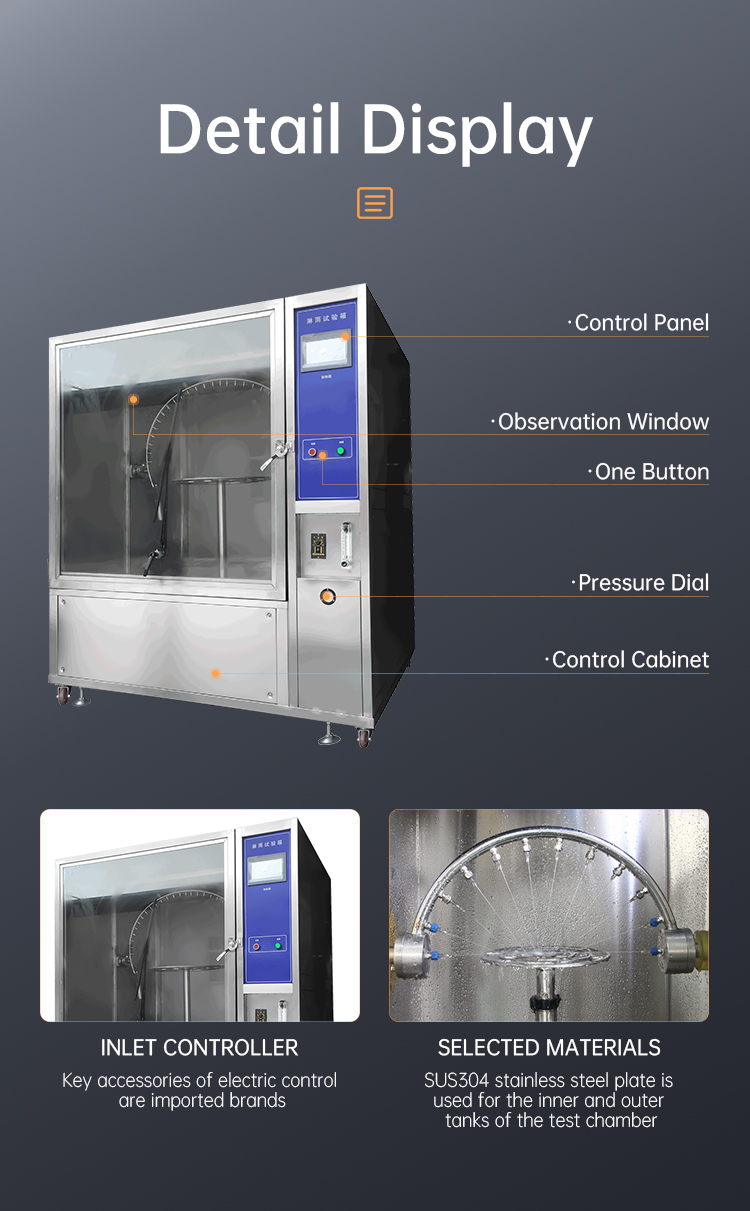

Structure of EN/ UL Rain test chambers:

1,The outside layer is composed of the high quality stainless steel plate, the inner container is the composed of stainless steel tabula rasa.

2, Large area of visible glass door, easy to observe the test specimens in the testing chamber

3,The button is made of high quality of tank, can be fixed PU activities wheel, it is convenient for user moved.

4, With 270 degree swing pipe and 360 degrees whorl pole water jet device.

5, Adjustable speed samples stage.
