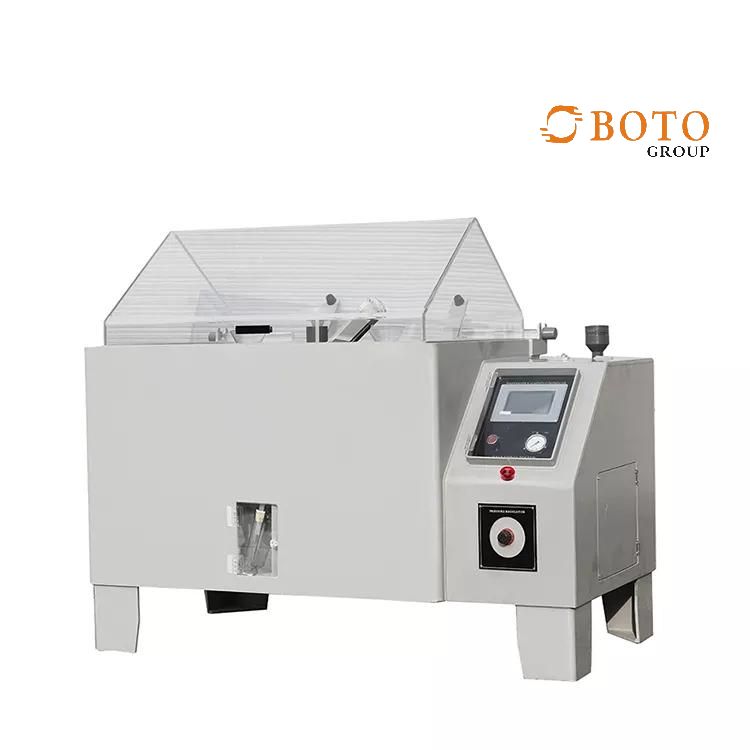

Battery Environmental Reliable Test Chamber Climate Salt Spray Tester For Battery Testing

^{Battery Environmental Reliable Test Chamber Climate Salt Spray Tester For Battery Testing}

^{Usage: Auto Testing Machine Climate Chamber Salt Spray Test Chamber Battery Test Machine Battery Stability Test}

^{Products Description}

^{Packaging Dimensions:1270*800*1380mm}

^(WxDxH)

^{Power supply source: single-phase, 220V±10%, 50Hz (can be appointed)}

^{Gross Weight: 120kg}

^{PRODUCT FEATURES}

^{1. Durable 8 mm PVC construction, anti-corrosion and easy to clean.}

^{2. Reservoirs with mixing system on stand.}

^{3. Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.}

^{4. Exposure zone lined with corrosion-resistant PVC sheets.}

^{5. Clear cover allows viewing of test conditions.}

^{6. Peaked cover prevents dripping of condensation onto samples.}

^{7. Water seal and water level protection system.}

^{8. Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.}

^{9. Automatic DI water fills to humidifying tower.}

^{10. Digital temperature control.}

^{11. Integral over-protection on heaters.}

^{12. Low water cut-off protection on humidifying tower.}

^{Product Paramenters}

Model	BT-E-120
Internal Size (W*D*H)	600*400*450mm
External Size (W*D*H)	1070*600*1180mm
Equipment Material	P.V.C rigid plastic plate, thickness 8mm
Sample tray	Diameter 10mm glass fiber rod, anti-rust V-shape plastic steel to make sure sample in 15~30 degree inclined
Temperature Range	Room temperature ~ 55℃
Temperature Fluctuations	≤±0.5℃
Temperature Uniformity	≤±2℃
Temperature Precision	±1℃
Spraying method	Continuous and Periodic spray type
Test Chamber Temperature	Salt Spray Method (NSS ACSS)35±1℃ Corrosion-resistant Testing Method (CASS) 50±1℃
Saturated air Barrel Temperature	Salt Spray Method (NSS ACSS)47±1℃ Corrosion-resistant Testing Method (CASS) 63±1℃
Brine Temperature	35℃±1℃
Spray Quantity	1.0~2.0 ml / 80cm2 / hr
PH value	Salt Spray Method (NSS ACSS6.5~7.2) Corrosion-resistant Testing Method(CASS)3.0~3.2
Lab Volume	108L
Brine Tank Capacity	25L
Multiple Safety Protection Devices	Current discharge protection, over pressure protection, over temperature protection, over load fuse protection
Accessories	Testing Salt/ Measuring tank/Nozzle Equipment x 1 set
Air source	1HP Air pump (provided by buyer)
Test criteria	ASTM B117-08, ISO 9227...

^{Production Process}

^{Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.}

^{Company introduction}

^{BOTO GROUP is a professional manufacturer of various kinds of testing equipment over 20 years. BOTO products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.}

<sup>BOTO deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.

Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.</sup>

^{Certification}

^{The certificate is valid until June 17, 2024}

^{Cooperative partners}

^{BOTO ADVANTAGE}

^{Customers photos}

^{OUR TEAM}

^{Our Services}

^{During the whole business process, we offer Consultative Selling service.}

^{1) Customer inquiry process:}

^{Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.}

^{2) Specifications customize process:}

^{Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.}

^{3) Production and delivery process:}

^{We will produce the machines according to confirmed PO requirements. Offering photos to show production process.}

^{After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.}

^{Deliver the products in confirmed shipping time and inform customer.}

^{4) Installation and after sale service:}

^{Defines installing those products in the field and providing after-sales support.}
