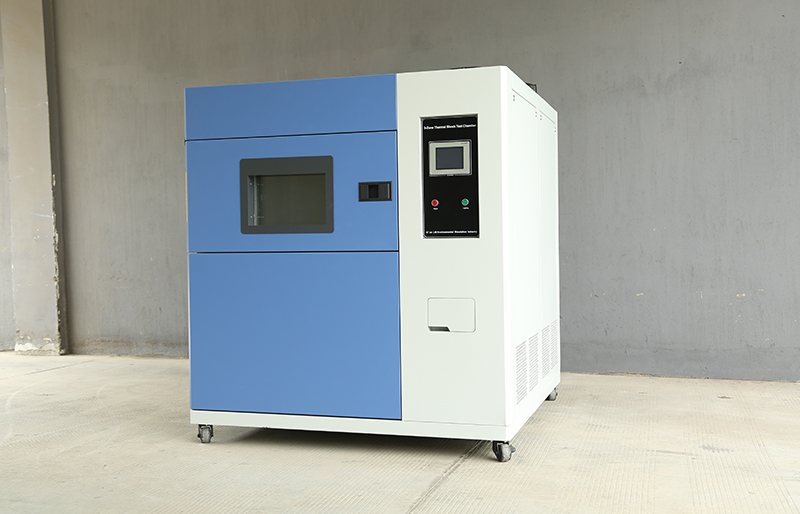

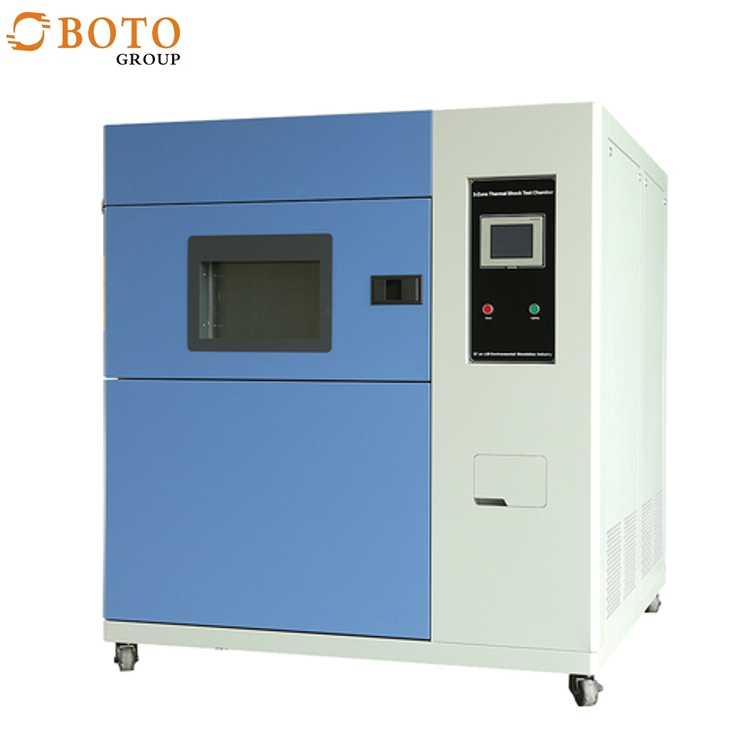

CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber

  • 1
  • 2
  • 3

Brand Name : BOTO

Model Number : BT-3TS-300

Certification : CE ISO

Place of Origin : China

MOQ : 1set

Payment Terms : L/C, T/T

Supply Ability : 200 Set/Sets per Month

Delivery Time : 5-25 days

Packaging Details : wooden case

Power : Electronic

Power supply : 380V 50Hz

Standard : ASTM

Function : Inspection

Package : Standard Wooden Box

Max load : 25 KG

Color : Blue

Contact Now

Advantage of Temperature Impact Climatic Test Chamber

1. Aluminum piece of refrigeration,Faster cooling rate
2. 2pcs shelf,Height can be adjustable; Can be remove
3. Cable hole:supply power to workroom's specimen, to better finish testing

CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber

Product Description

CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber
Specifications of Temperature Impact Climatic Test Chamber
Model
BT-3TS-100
BT-3TS-210
BT-3TS -300
Internal dimensions(mm)
500*500*400
700*600*500
700*780*550
Overall dimensions(mm)
1150*1950*2100
1350*2100*2200
1350*2250*2300
Sample Loads
10kg
15kg
25kg
Pre-heat room
+220℃
Ambient temperature to ~ + 200℃, within in 30 minutes.

Pre-cool room
-70℃
Ambient temperature to ~ -70℃, within in 30 minutes
Test room
Ambient temperature +20 to +200°C
–65 to -5°C
Recovery time
Within 15 minutes
Temperature fluctuation
≤±0.5℃
Temperature deviation
≤±3℃
Controller
Programmable color LCD touch screen controller
Cooling system
Mechanical compression refrigeration system
Refrigerating unit
French TECUMSEH compressor
Refrigerant
R404A, R23
Exterior material
Steel Plate with protective coating
Interior material
SUS304 stainless steel
Observation window
Interior lighting
Standard configuration
2 pieces of stainless steel shelves, Φ 50 round cable port
Power Supply
380V 50HZ
Environmental conditional
5℃~+40 ℃ ≤85% RH

Product Details of Temperature Impact Climatic Test Chamber
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber

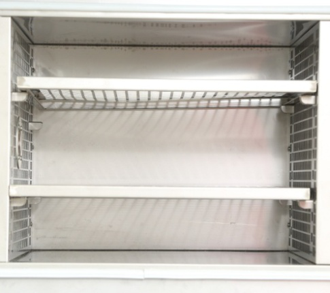

Test Area
Pneumatic damper type thermal shock chamber. Pre-hot room, pre-cool room and test room configuration 2 pieces of adjustable and removable sample rack.
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber

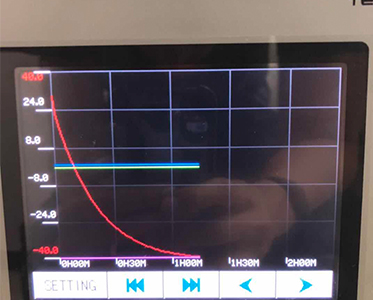

Control Panel
Programmable color display touch screen controller. Programs reach to 999 groups and 999 sections Ethernet ,USB (option),APP,
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber

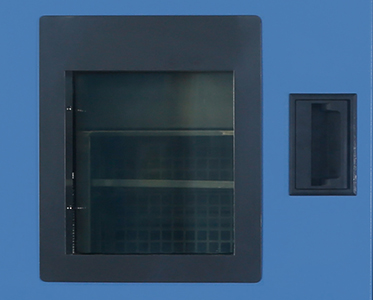

Large Viewing Window
Interior lighting Window coated with conducting film to protect it from frost.
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber

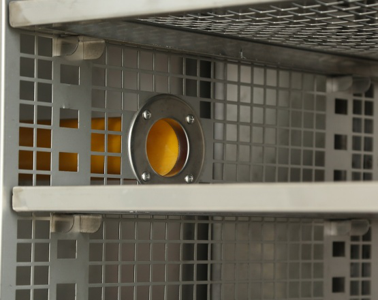

Cable Port
Φ 50 round cable port at the left side of workroom, and seal with silicone screw plug.
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber

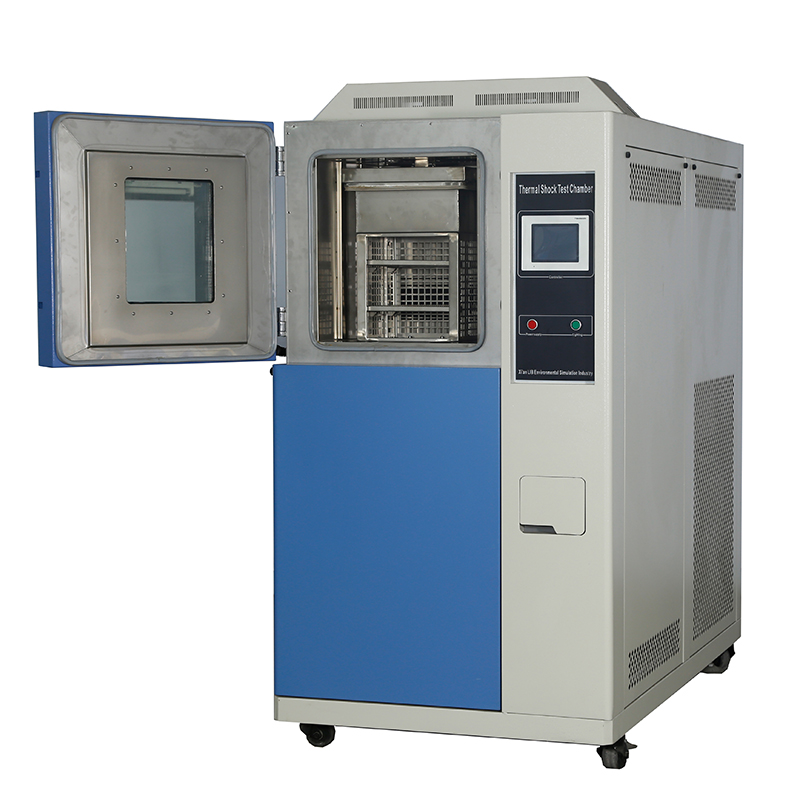

2TS thermal shock test chamber

CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber

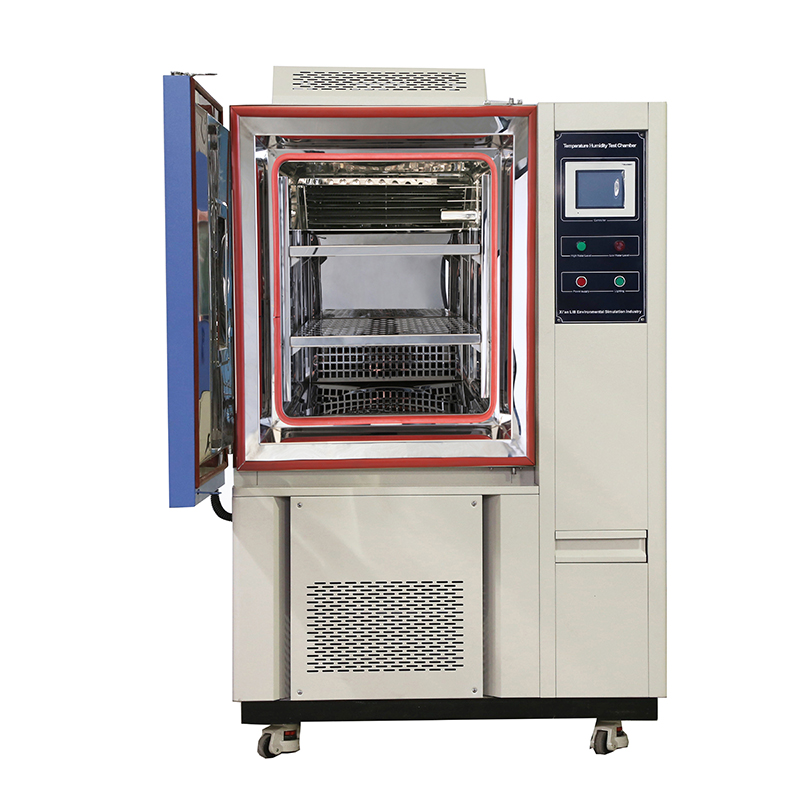

Temperature humidity chamber

Company introduction
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber
Certifications
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber
Production line workshop
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber
Company cooperative partners
CE Approved Thermal Shock Cycle Temperature Impact Climatic Test Chamber
