Equipment summary:

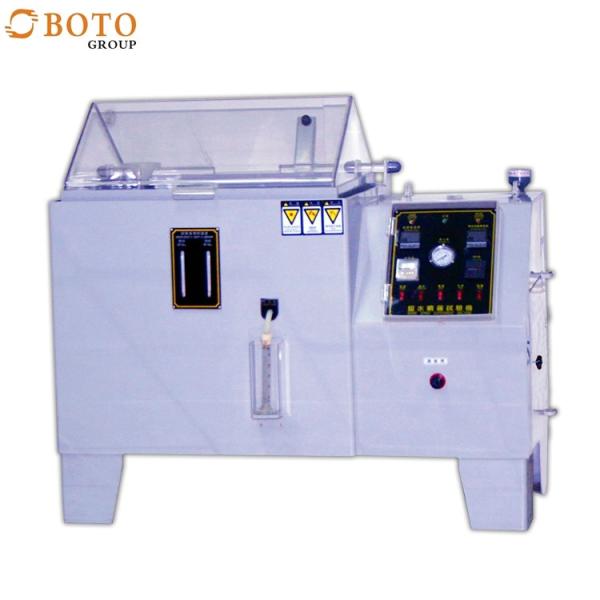

Salt spray testing machine used to test the corrosive resistance of products whose the surface was treated with paint, electroplating, inorganic and organic film, anode handling, anti-rust oil, etc.
Technical parameters:
| Model | BT-2001C | BT-2001B | BT-2001A |
| Inside box size (cm) | 60x45x40 | 90x60x50 | 120x80x50 |
| Outside box size (cm) | 107x60x118 | 141x88x128 | 190x110x140 |
| Testing room temperature | Salt test (NSS ACSS)35±1 degree / Corrosion Test (CASS)50±1 degree |
| Pressure barrel temperature | Salt test (NSS ACSS)47±1 degree / Corrosion Test (CASS)63±1 degree |
| Brine temperature | 35±1 degree or 50±1 degree |
| Testing Room Capacity | 108L | 270L | 480L |
| Brine tank capacity | 15L | 25L | 40L |
| Salt concentration | The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2, 2H2O) |
| Air pressure | 1.00±0.01kgf/cm² |
| Spray volume | 1.0~2.0ml/80cm2/h (working at least 16 hours, and then take the average) |
| Testing room relative humidity | 85% above |
| PH | 6.5~7.2 3.0~3.2 |
| Spray form | Programmable spray (Including continuous and intermittent spray) |
| Power | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A |
Corresponding standard :
1. GB/T 2423.17-1993 salt spray test
2. GB/T 2423.18-2000 salt spray test
3. GB/T 10125-1997 salt spray test
4. ASTM.B117-97 salt spray test
5. JIS H8502 salt spray test
6. IEC68-2-11 salt spray test
7. IEC68-2-52 1996 salt spray test
8. GB.10587-89 salt spray test
9. CNS.4158 salt spray test
10. CNS.4159 CASS Accelerated acetic acid copper salt spray test
11. GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
