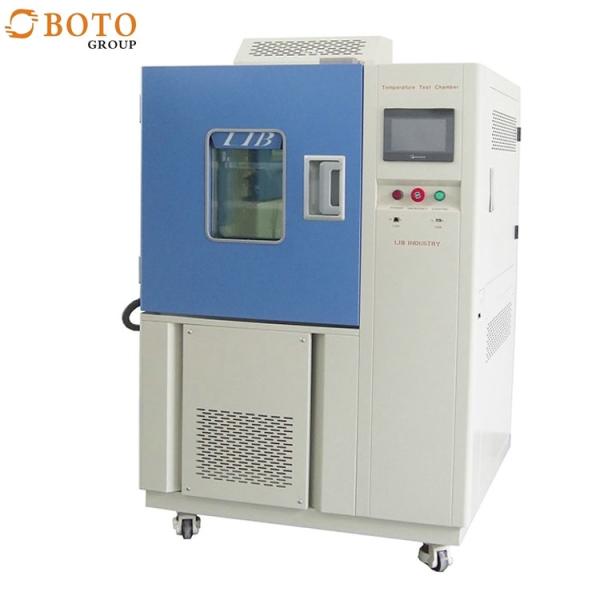

BOTO 14k/Min Temperature Changing Rare Rapid Rate Temperature Cycle Test Chamber

Name: BOTO 14kMin Temperature Changing Rare Rapid Rate Temperature Cycle Test Chamber
Brand: BOTO
Price: 1 USD

China BOTO 14k/Min Temperature Changing Rare Rapid Rate Temperature Cycle Test Chamber factory

Brand Name : BOTO

Model Number : BT-TH-100

Certification : CE ISO9001

Place of Origin : China

MOQ : 1set

Payment Terms : L/C, T/T

Supply Ability : 100 Set/Sets per Month

Delivery Time : 5-25 days

Packaging Details : wooden case

Model : BT-TH-100

Internal Dimension (mm) : 400*500*500

Overall Dimension (mm) : 860*1050*1620

Interior Volume : 100L

Low type : A: -40℃ B:-70℃ C ：-86℃

Temperature Range : -20℃ ～+150 ℃

Temperature Fluctuation : ± 0.5 ℃

Temperature Deviation : ± 2.0 ℃

Cooling Rate : 1 ℃ / min

Heating Rate : 3 ℃ / min

Refrigerant : R404A, R23

Controller : Programmable color LCD touch screen controller

Temperature Sensor : PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃

Exterior Material : Steel Plate with protective coating

Interior Material : SUS304 stainless steel

Standard Configuration : 1 Cable hole (Φ 50,) with plug; 2 shelves

Power Supply : 220V 50Hz / 380V 50Hz

Maximum Noise : 65 dBA

Environmental Conditional : 5℃～+35 ℃ ≤85% RH

Contact Now

14k/min Temperature changing Rare Rapid Rate Temperature Cycle Test Chamber

Technical Parameters

Name	14k/min Temperature changing Rare Rapid Rate Temperature Cycle Test Chamber
Model	BT-TH-100	BT-TH-225
Internal Dimension (mm)	400500500	500600750
Overall Dimension (mm)	86010501620	96011501860
Interior Volume	100L	225L
Low type	A: -40℃ B:-70℃ C -86℃
Temperature Range	-20℃ ～+150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Cooling Rate	1 ℃ / min
Heating Rate	3 ℃ / min
Refrigerant	R404A, R23
Controller	Programmable color LCD touch screen controller
Temperature Sensor	PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Standard Configuration	1 Cable hole (Φ 50,) with plug; 2 shelves
Power Supply	220V 50Hz / 380V 50Hz
Maximum Noise	65 dBA
Environmental Conditional	5℃～+35 ℃ ≤85% RH

Detail Design

BOTO 14k/Min Temperature Changing Rare Rapid Rate Temperature Cycle Test Chamber

Test Area

1.SUS304 stainless steel 2.Internal Dimension:50L and 80L 3.Rust-proof to high and low temperature and moisture corrosion; 4.Adjustable sample shelves, facilitate the various sizes of test samples.

Cable Hole

1.Inner hole diameter is 50mm. 2.Convenient for the cable to pass through,and provide power for the test piece 3.Reliably Sealing 4.Customizable test hole size

Controller

1.PID programmable color touch screen controller 2.Can be network connection computer 3.Can edit 100 programs 100 segments 4.Multiple languages are available

Advantage

1.Multiple model:T-100,T-225,T-500,T-800,T-1000 2.Testing small and large test pieces,Can be powered 2.Low types: -20℃/-40℃/-60℃/-70℃/-86℃ 3.Free calibration 4. 72 hours commissioning before delivery to ensure product performance

Company profile

Product Tags:

100L Environmental Test Chambers

R404A Environmental Test Chambers

Programmable LCD Environmental Test Chambers

BOTO 14k/Min Temperature Changing Rare Rapid Rate Temperature Cycle Test Chamber Images
