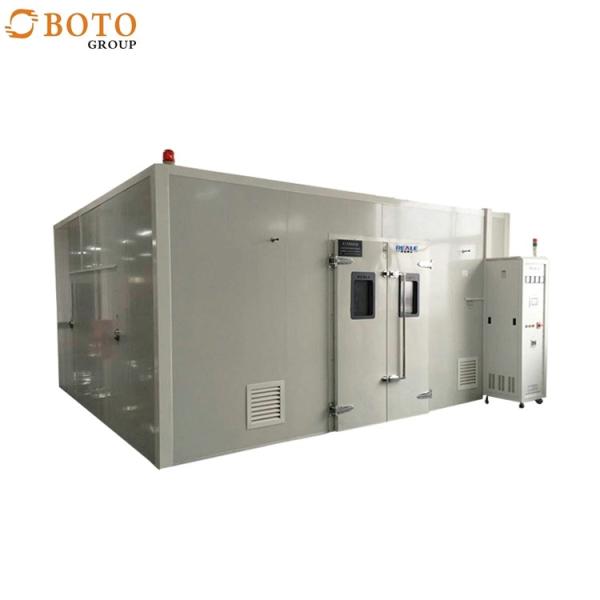

Land Type Medical Product Aviation Electronic Accelerated Aging Test Chamber

Name: Land Type Medical Product Aviation Electronic Accelerated Aging Test Chamber
Brand: BOTO
Price: 1 USD

China Land Type Medical Product Aviation Electronic Accelerated Aging Test Chamber factory

Brand Name : BOTO

Model Number : BT-REO/BT-REZ

Certification : CE ISO

Place of Origin : China

MOQ : 1set

Payment Terms : L/C, T/T

Supply Ability : 300 Piece/Pieces per Year

Delivery Time : 5-25 days

Packaging Details : wooden case

Inner dimension : W5.0× H2.2 × D4.0m (Customized according to customer's requirements.)

Temp. range : RT-100℃

Temp. fluctuation : ±0.5℃

Temperature deviation : ±2.0℃

Heat up time : within 55minutes

Inner box material : high tension color steel plate thickness up to 1mm

Outer box material : high tension color steel plate thickness up to 1mm

Insulation materials : 100mm thick first grade refractory glass rock wool

Cooling system : Refrigeration by compressor, according to customer's requirements

Controller : LCD screen display in English/Chinese , can install computer monitor system according to customer's requirements.

Safety devices : Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-temperature protection switch, fuses, fault warning system.

Transportation : The main structure of the aging room is assembled, and each part is shipped to your installation site and assembled.

Noise control : ≤75dB

Power : AC380V±10% 50HZ 3 phase 4 wires+ground wires

Remarks : Free custom service

Contact Now

Land Type Medical product/aviation Electronic Accelerated Aging Test Chamber

Product Description

Product Application

Burn-In aging test chamber  is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of big test samples, such as electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.

SPECIFICATIONS
Model	REO/REZ
Inner dimension	W5.0× H2.2 × D4.0m (Customized according to customer's requirements.)
Temp. range	RT-100℃
Temp. fluctuation	±0.5℃
Temperature deviation	±2.0℃
Heat up time	within 55minutes
Body material	Inner box material high tension color steel plate thickness up to 1mm Outer box material high tension color steel plate thickness up to 1mm
Insulation materials	100mm thick first grade refractory glass rock wool
Cooling system	Refrigeration by compressor, according to customer's requirements
Controller	LCD screen display in English/Chinese , can install computer monitor system according to customer's requirements.
Safety devices	Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-temperature protection switch, fuses, fault warning system.
Transportation	The main structure of the aging room is assembled, and each part is shipped to your installation site and assembled.
Noise control	≤75dB
Power	AC380V±10% 50HZ 3 phase 4 wires+ground wires
Remarks	Free custom service

Land Type Medical Product Aviation Electronic Accelerated Aging Test Chamber

Detailed Images

Name: Fan
Brand: Twin City
Original: USA
US Twin City Circulation Fans, high performance and stable efficiency, ensure indoor temperature uniformity.

Name: Relay
 Brand: OMRON
 Original: Japan
 It is an easy control of power size to ensure stable device performance.

Name: Controller
 Original: South Korea
 Programmable temperature controller HR-800. Can display setting parameters, time, heater and other working status.

Name: Heating pipe
 Original: Taiwan
 Taiwan explosion-proof heating tube, 321 material explosion-proof grade dellCT1-T4, safe and reliable.

Name: Contactor
Original: Taiwan
 Taiwan electromagnetic contactor, high performance and stable efficiency, ensure indoor temperature uniformity.
