Salt Spray Testing Chamber With Temperature Control Salt Spray Tester Corrosion Test Chamber

Name: Salt Spray Testing Chamber With Temperature Control Salt Spray Tester Corrosion Test Chamber
Brand: BOTO
Price: 1 USD

China Salt Spray Testing Chamber With Temperature Control Salt Spray Tester Corrosion Test Chamber factory

Brand Name : BOTO

Model Number : BT-PJ-JK-90

Certification : CE ISO

Place of Origin : China

MOQ : 1set

Payment Terms : L/C, T/T

Supply Ability : 100 Set/Sets per Month

Delivery Time : 5-25 days

Packaging Details : wooden case

Salt (PH) : 6.5~7.2

Internal dimensions : 90*60*50CM

Box temperature : RT to +50℃, ±1℃

Model : PJ-JK-90,120 or customize

Spray Pressure : 70~170Kpa

Power : Electronic

Brine tank capacity : 25L

Power supply : 220V 50Hz

Air pressure : 1.00±0.01kgf/cm*cm

Weight : 60kg

Test time : 1~999(S,M,H)adjustable

Contact Now

Salt Spray Testing Chamber With Temperature Control Salt Spray Tester Corrosion Test Chamber

Products Description

Salt Spray Cycling Test Chamber can be used to simulated condition that more often meet at natural environment, and then deteriorated the natural environment to be tested, such as the salt spray, dry, wet, room temperature, low temperature
 environment, it is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting,
 coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion
 resistance of their products.
Features:
 1. Adopt automatically add water system, can watered by itself while lack of water.
 2. Precise glass spray nozzle, good uniformity, mist dropping naturally, no Na-Cl crystallized salt.
 3. Double over-heat protection devise and alarm when water short storage to ensure use safety.
 4. Digitally temperature controller, PID controlled.
 5. Tapered Spray tower, even mist dropping.
 6. Applicable fields including automobile parts, aviation equipment, photographic equipment, building materials, electricity,
 electrical and electronic systems.
 7. Comply with ASTM B-287, JIS D-0205, H-8681, Z-2371, K-5400,etc.

Technical Parameters:

Product Model		BT-PJ-JK-60	BT-PJ-JK-90	BT-PJ-JK-120	customi-zable
Volume(L)		108	270	480
Internal Size W×H×W(mm)		600×400×450	900×500×600	1200×500×800
External Size W×H×W(mm)		1150×1090×672	1450×1200×842	2080×1285×1240
Performance Index	Temperature Range	LaboratoryTemperature Range :RT~50℃ Saturated air barrelTemperature Range :RT~63℃
	Temperature Deviation	±1.0℃
	Temperature Uniformity	≤2.0℃
	Temperature Fluctuation	±0.5℃
	Heating Rate	Test Room RT→+50℃≤60 min Pressure Barrel RT→+63℃≤60 min
	Salt fog deposition	1~2ml/80 square meter (At least 16 hours were collected and averaged)
	Spray Pressure	70~170Kpa
	Spraying Mode	Continuous spray
	Test time	1~999(S,M,H)adjustable
	PH	6.5~7.2 3.0~3.2
Main Part	Control System	temperature controller
		PT100 thermocouple (armor), PID control
	Spraying System	The Nozzle is made of special glass material, the size and angle of spray can be controlled
		operate manual spray or set automatic spray according to program
Structural Features	Material Enclosure	Imported PVC polyethylene board is adopted
	Medicament refill cylinder	hidden type supplementary water gauge
	Pressurized air drum	SUS304# stainless steel high-pressure barrel
	Test Rack	The plane indexing frame can be used to adjust the Angle of fog falling or being foggy at any direction
	Cover Material	imported European acrylic board
	Spray Tower	air atomizing nozzle, height can be adjusted
	Spray volume collector	Cone funnel with diameter of 100mm
	Heating System	Titanium alloy heat pipe, steam heating, P.I.D. control heating
	Brine Tank	Made of PVC board
	Saturated air barrel	SUS304 Stainless
	Drain line	acid and alkali resistant PVC piping
	Heater	Titanium alloy armored electric heating tube (test chamber bottom heating) SUS316# stainless steel armoured heating tube (saturation barrel)
Standard Fittings		1 set of nozzles, 2 fog collecting and measuring cylinders, 2 fog collecting collectors, etc.
Safty Device		Leakage, short circuit, motor overheating, overload, over current protection
Supply Voltage		AC220V 50Hz
Environment Requirement		Temperature 5.0~+30.0℃,Humidity≤85%RH,Air Pressure 86Kpa~106Kpa

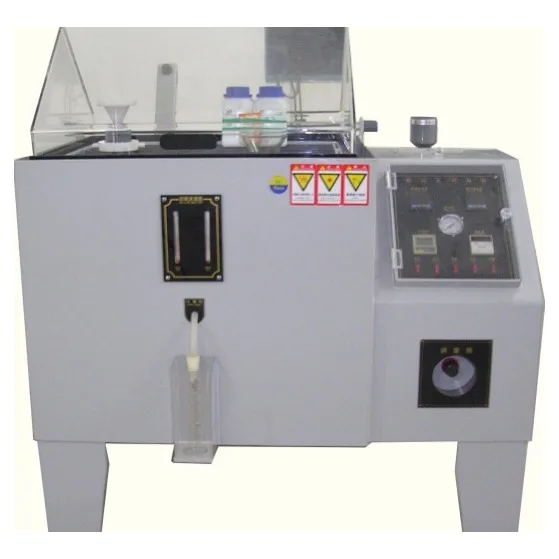

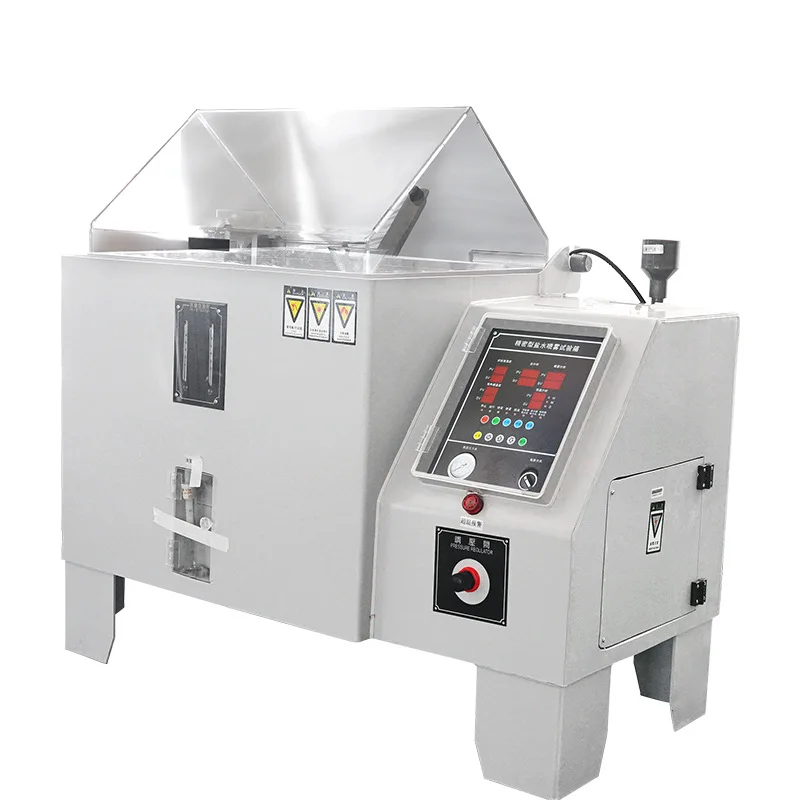

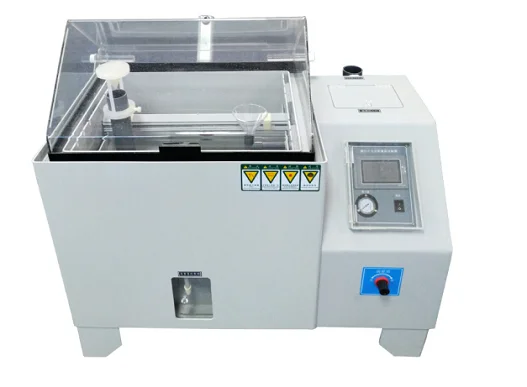

Details Images

Salt Spray Testing Chamber With Temperature Control Salt Spray Tester Corrosion Test Chamber
