Manufacturer Battery Safety Test Climatic Altitude Temperature Chamber

  • 1
  • 2
  • 3

Brand Name : BOTO

Model Number : BT-HUD-H204

Certification : CE ISO

Place of Origin : China

MOQ : 1set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 Set/Sets per Month

Delivery Time : 5-25 days

Packaging Details : wooden case

Internal material : SUS#304 stainless steel, thickness 3mm;

External material : A3 cold plate paint treatment, thickness 1.5mm;

Pressure range : 0.5~100Kpa, common test air pressure is 11.6 Kpa;

Material of storage partition : stainless steel;

The number of storage partitions : 1;

Control mode : push-button control;

Vacuum degree display : SMC digital display vacuum meter control, accurate display of vacuum degree, easy to set vacuum degree;

Timer : LED digital display, can be set within 0-99H99M;

Inner box size : 400x400x400mm (width x depth x height);

Dimensions : 650x620x1310mm (width x depth x height, including door lock);

Observation window : Two-layer tempered glass with a size of 250x250mm, equipped with stainless steel mesh;

Pressure fluctuation : ≤5%;

Equipment power supply : AC220V, 50HZ, 2.2KW;

Contact Now

Manufacturer Battery Safety Test Climatic Altitude Temperature Chamber

Application

Altitude Chamber is designed for UL, EN, IEC and other standard test requirements. It can reach the low-pressure storage state of the sample in a short time. It can automatically control the test cycle, monitor the air pressure change in the box during the whole process, and realize the automatic termination of the test. The simulated battery and battery pack are stored for 6 hours at a pressure equal to or lower than 11.6kPa and an ambient temperature of (20±5)°C. If the battery has no leakage, no exhaust, no disassembly, no rupture, and no fire, and every The open circuit voltage of a test cell or battery pack after the test is not less than 90% of its voltage before the simulation test, which is considered qualified.

Test Standard

GB/T 31485-2015 "Safety requirements and test methods for power batteries for electric vehicles"
GB/T 31241-2014 "Safety requirements for lithium-ion batteries and battery packs for portable electronic products"
UN 38.3 "United Nations Manual of Tests and Standards for Transport of Dangerous Goods"
IEC 62133 "Battery (pack) composed of batteries and safety requirements for portable equipment"
UL 1642:2012 "Lithium Battery Standard"

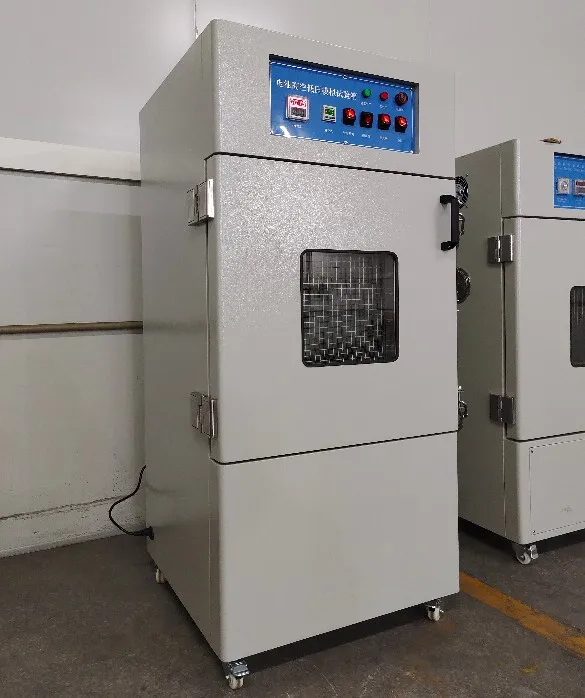

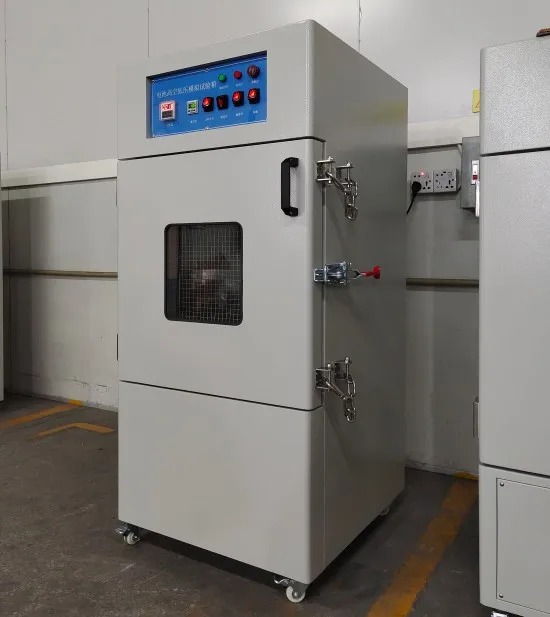

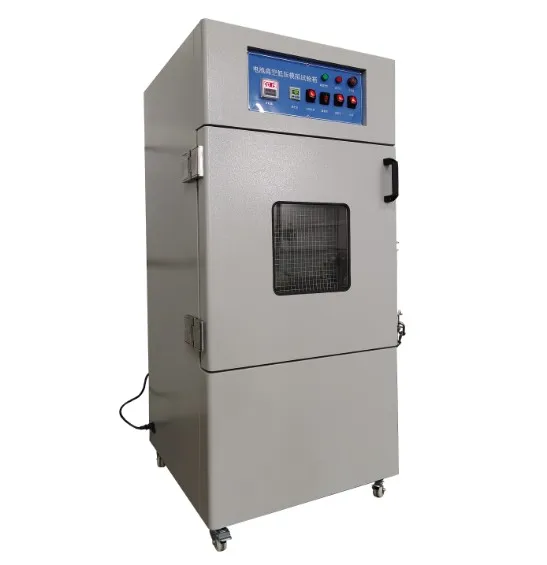

Details Images
Manufacturer Battery Safety Test Climatic Altitude Temperature Chamber
Manufacturer Battery Safety Test Climatic Altitude Temperature Chamber
Manufacturer Battery Safety Test Climatic Altitude Temperature Chamber
Product Paramenters
1. Internal material
SUS#304 stainless steel, thickness 3mm;
2. External material
A3 cold plate paint treatment, thickness 1.5mm;
3. Pressure range
0.5~100Kpa, common test air pressure is 11.6 Kpa;
4. Material of storage partition
stainless steel;
5. The number of storage partitions
1;
6. Control mode
push-button control;
5. Vacuum degree display
SMC digital display vacuum meter control, accurate display of vacuum degree, easy to set vacuum degree;
6. Timer
LED digital display, can be set within 0-99H99M;
7. Inner box size
400x400x400mm (width x depth x height);
8. Dimensions
650x620x1310mm (width x depth x height, including door lock);
9. Observation window
Two-layer tempered glass with a size of 250x250mm, equipped with stainless steel mesh;
10. Pressure fluctuation
≤5%;
11. Equipment power supply
AC220V, 50HZ, 2.2KW;
