Product Description
Applicable Industries:

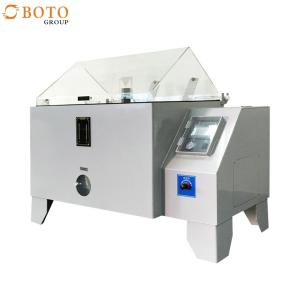

Corrosion Salt Spray Fog Environmental Test Machine for Nss / Acss / Cass Test is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.
Characteristics
Salt fog corrosion testing machine/salt spray ageing chamber/salt mist resistance tester
1. LCD display and a pid controller or touch screen programmable controller.
2. Entire PVC sheet material, the internal ring with the use of advanced three-dimensional flutter high technology products, strong structure, fresh, never deformation and acid and alkali, high temperature and never aging, for salt spray, copper acetate, and other test specifications.
3. Controller are in the same panel, the operation simple and clear.
4. Neutral salt spray (NSS), acetic acid salt spray ( AASS ), copper accelerated salt spray ( CASS ) either of the test lab
Salt spray test machine parameters
| Model | BT-60 | BT-90 | BT-120 | BT-160 | BT-200 |
| Inner size (cm) | 60x45x40 | 90x60x50 | 120x100x50 | 160x100x50 | 200x100x50 |
| External size(cm) | 107x60x118 | 141x88x128 | 190x130x140 | 230x130x140 | 270x130x140 |
| Inside temp | Brine test method(NSS ACSS)35°C±1°C/Corrosion resistance test method |
| (CASS)50°C±1°C |
| Brine temp | 35°C±1°C 50°C±1°C |
| Test chamber volume | 108L | 270L | 600L | 800L | 1000L |
| Brine chamber volume | 15L | 25L | 40L | 40L | 40L |
| Compressed air pressure | 1.00±0.01kgf/cm2 |
| Spray volume | 1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average) |
| Test room relative humidity | 85%RH or more |
| PH | 6.5~7.2 3.0~3.2 |
| Spray method | Programmable spray (including the continuous spray interrupted spray) |
| Power | AC220V1Φ10A |
Company introduction
BOTO GROUP Ltd. is a private enterprise integrating r&d, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments.
The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.
In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.
The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.
