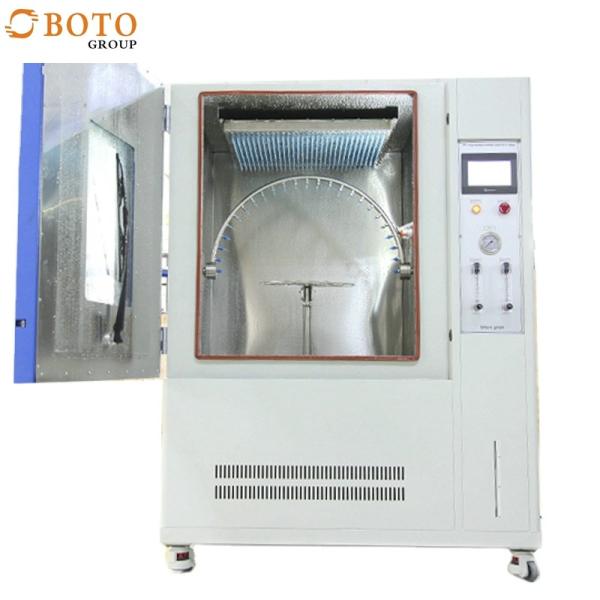

IPX1 IPX4 Rain Tester Drop Rain Testing Machine Dust Rain Proof Environmental Test Chamber
Get wet in the rain in the rain test chamber is a kind of artificial simulation of the chamber, it is well known to all components and equipment in the atmosphere environment, both working state and storage condition, will be different degree influenced by all kinds of water (impurities), which are comparatively common in the rain, get wet in the rain test is to prevent the equipment after the rain infiltration and in the rain or the performance is a degree of change.This test chamber performance indicators meet the GB/T10485 "car, car and trailer and trailer external device external lighting and signal device basic environmental testing, basic environmental testing of industrial electronic products and the standard of JIS, MIL, and so on related test. 20653-2006,GB-4208-93, gb2423.37 - 89la, GB4208-93, DIN40050.5KAnd the corresponding national standards in the rain test.
| Model | BT-IPX14B-R200 | BT-IPX14B-R400 |
| Inner dimension | 500L*500D*650H mm | 900L*900D*1050H mm |
| Outer dimension | 1000*680D*1400H mm | 1350L*1150D*1750H mm |
| Turntable diameter | ￠200mm | ￠400mm(R200mm is optional) |
| Turntable Max. load | 50KG | 50KG |
| Turntable lifting height | 150-250 mm | 450-750 mm |
| Turntable tiltable angle | 0° or 15°(horizontal direction) | 0° or 15°(horizontal direction) |
| Turntable speed | 1 -5r/min(precise control ) | 1 -5r/min(precise control ) |
| Turntable rotate | Foreward / Turn back and forth /
intermittent rotation | Foreward / Turn back and forth /
intermittent rotation |
| Testing time | 0-999 min | 0-999 min |
| Total weight | Appro. 230kg | Appro. 230kg |
IPX12 technology parameter |
| Drip plate area | 200*200mm | 600*600mm |
| IPX12 Spray aperture
diameter (mm) | ￠0.4mm | ￠0.4mm |
| Space of Dripping
aperture | 20*20 mm | 20*20 mm |
| Rainfall precipitation | IPX1=1mm/min IPX2=3mm/min | IPX1=1mm/min IPX2=3mm/min |
| Flow adjust | Manual setting | Manual setting |
| Drip plate lifting | Fixed | Fixed |
IPX34 technology parameter |
| Swing pipe radius | R200mm | R400mm(R200mm is optional |
| Swing pipe Flow | IPX3=0.56L/min；IPX4=0.84L/min | IPX3=1.1L/min；IPX4=1.8L/min |
| Spray aperture size(mm) | 0.4mm | 0.4mm |
| Space of Spray aperture | 50mm | 50mm |
| Swing pipe inner diameter(mm) | 15mm | 15mm |
| | 120º(IPX3),350º(IPX4)(precise control or customize) | 240°Turn back and forth 4S,720°Turn back and forth
12S(precise control or custom |
| Swing pipe speed | 240º(4s) 720º(12s), or customize | R400mm(R200mm is optional |
| |
| Power Supply | 220V |
| Power Supply of samples | 220V |
| Power | 1.0KW |
| Protective device | Leakage, water shortage, short circuit |
| Standards | IEC60529:1989 +A1:1999 +A2:2013 |
