CE Electronic Environmental Vibration Comprehensive Test Chamber

Name: CE Electronic Environmental Vibration Comprehensive Test Chamber
Brand: BOTO
Price: 1 USD

China CE Electronic Environmental Vibration Comprehensive Test Chamber factory

Brand Name : BOTO

Model Number : BT-HUD-E809

Certification : CE ISO

Place of Origin : China

MOQ : 1set

Price : Negotiated

Payment Terms : T/T

Supply Ability : 100 Set/Sets per Month

Delivery Time : 1-15 days,to be negotiated

Packaging Details : wooden case

Internal chamber dimension (W*D*H) : 1000*1000*1000mm

External chamber dimension(W*D*H) : 1200*3000*3800mm approx.

Temperature range : -40 ℃~ 150℃

40 ℃~ 150℃ : ±0.5℃

Temperature uniformity : 2℃

Cooling speed(temp. Range: 85C~-40C) : 5℃/min in average; without loading

5℃/min in average; without loading : 5℃/min in average; without loading

Humidity fluctuation : ±3%RH

Contact Now

CE electronic environmental vibration comprehensive test chamber

Function

Temperature Humidity Vibration Test Chamber adopts test for aerospace products, automotive, electrical appliances and instruments, materials, coating and other parts under temperature & humidity and vibration environment condition. It’s widely used to do environmental endurance test,reliability growth test, reliability qualification test, product reliability acceptance test, routine test, environment stress screening test and so on.

Product Parameters
  	 			Climate Chamber

 			Internal chamber dimension (W*D*H)
 			1000*1000*1000mm

 			External chamber dimension(W*D*H)
 			1200*3000*3800mm approx.

 			Temperature range
 			-40 ℃~ 150℃

 			40 ℃~ 150℃
 			±0.5℃

 			Temperature uniformity
 			2℃

 			Cooling speed(temp. Range: 85C~-40C)
 			5℃/min in average; without loading

 			Heating speed(temp. Range: -40C~85C)
 			5℃/min in average; without loading

 			Humidity range
 			10~98%RH

 			Humidity fluctuation
 			±3%RH

 			Internal chamber material
 			SUS#304 stainless steel, mirror finished

 			External chamber material
 			Stainless steel with paint spray

 			Cooling method
 			Water-cooled


 			Controller
 			Programmable control temperature and humidity
 			Can set different parameter for cyclic test

 			Insulation material
 			50mm high density rigid Polyurethane foam


 			Heater
 			Explosion-proof type SUS#304 stainless steel fins radiator pipe
 			heater

 			Compressor
 			German Bock compressor

 			Refrigerant
 			Environmental friendly refrigerant R449A/R23

 			Temperature sensor
 			PT-100 dry and wet bulb sensor

 			Observation window
 			Tempered glass

 			Testing hole
 			2 units with diameter 100mm, for cable routing

 			Sample tray
 			SUS#304 stainless steel, 2pcs



Safety protection device
 			Protection for leakage Over-temperature
 			Compressor over-voltage and overload
 			Heater short circuit



  	 			Vibration Shaker

 			Max. Sine Force
 			3200Kg.f peak

 			Max. Random Force
 			3200Kg.f r.ms

 			Max. Shock Force
 			6400Kg.f peak

 			Frequency Range
 			2~3000Hz

 			Displacement (p-p)
 			51 mm

 			Max. Velocity
 			2m/s

 			Max. Table Acceleration
 			100g (without loading)

 			Armature Diameter
 			335mm

 			Effective Armature Mass
 			30kg

 			HE/ST screw dimension
 			17×M10

 			Max. Load Capacity
 			300kg

 			Magnetic Leakage
 			<10gauss

 			Axial Vibration Isolation Frequency
 			<2.5Hz

 			Power
 			Three-phase, 380V, 50Hz

 			Machine dimension
 			845mm*790mm*840mm; without expander table

 			Vibration System



 			Controller Hardware
 			No of input channels: 02 analogue channels ADC: 24-bit Resolution
 			No of output channels: 01 DAC: 24-bit Resolution
 			USB 2.0 communication port



 			Controller Software Modules
 			Random Vibration (1-5000Hz), Sweep Sine Vibration (1-5000Hz), Classical Shock,
 			Resonance Search, Track and Dwell
 			and Self Calibration


 			Other accessory
 			Test Computer: LENOVO M4500
 			Printer: HP 1020plus



 			Customer Responsibilities
 			Installing all utilities where required, including connecting utilities to the equipment
 			Installation/rigging of equipment
 			Completing any necessary building alterations including roof penetrations
 			Customers responsible for any permits required by -
 			local/state government

 			Sample tray
 			SUS#304 stainless steel, 2pcs



Safety protection device
 			Protection for leakage Over-temperature
 			Compressor over-voltage and overload
 			Heater short circuit

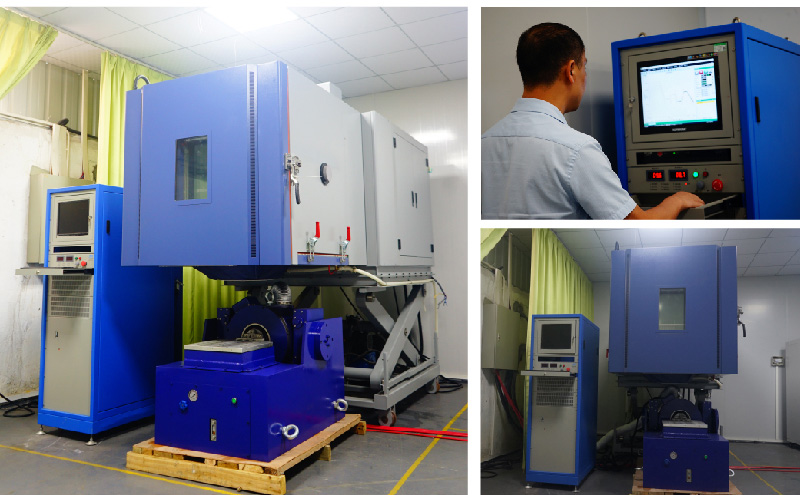

More pictures for your reference

CE Electronic Environmental Vibration Comprehensive Test Chamber

Company introduction

BOTO GROUP Ltd. is a private enterprise integrating r&d, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.

CE Electronic Environmental Vibration Comprehensive Test Chamber

Cooperate process

CE Electronic Environmental Vibration Comprehensive Test Chamber
