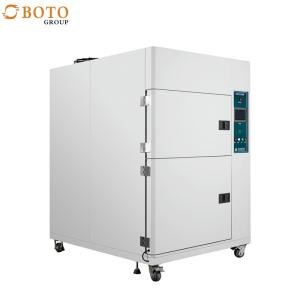

Environmental Climatic Cool And Heating Thermal Shock Testing Chamber

Name: Environmental Climatic Cool And Heating Thermal Shock Testing Chamber
Brand: BOTO
Price: 1 USD

China Environmental Climatic Cool And Heating Thermal Shock Testing Chamber factory

Brand Name : BOTO

Model Number : BT-B-80L

Certification : CE ISO

Place of Origin : China

MOQ : 1set

Price : Negotiated

Payment Terms : T/T

Supply Ability : 30 Set/Sets per Day

Delivery Time : 1-15 days,to be negotiated

Packaging Details : wooden case

Product Name : Thermal Shock Test Chamber

Internal size : 80L:W500*H400*D400mm(Can be customized according to customer needs)

External size : 80L:W1400*H1850*D1500mm(Can be customized according to customer needs)

Temperature shock range : High temperature +60℃~ +150℃ Low temperature -40℃~ -10℃

Preheating temperature range : 60℃--200℃

High temperature tank heating time : RT~+200℃≤30min (RT:+10~+30℃)

Precooling temperature range : (-10)℃~ (-70)℃

Low temperature tank cooling time : RT~-70℃≤50min (RT:+10~+30℃)

Temperature fluctuation : ±1.0℃

Temperature uniformity : ±2.0℃

Throttle conversion time : ≤5S

Impact recovery time : (-40)℃~(+150)℃≤5min

Contact Now

Environmental Climatic Cool And Heating Thermal Shock Testing Chamber

Product Description

This Chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.

Standards:GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566 etc.

Characteristics:

1.Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.

2. Control temperature&humidity well-distributed, precisely and steady.

3.Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.

Product Specification

Product Name	Thermal Shock Test Chamber
Internal size	80L:W500H400D400mm(Can be customized according to customer needs)
External size	80L:W1400H1850D1500mm(Can be customized according to customer needs)
Temperature shock range	High temperature +60℃~ +150℃ Low temperature -40℃~ -10℃
Preheating temperature range	60℃--200℃
High temperature tank heating time	RT~+200℃≤30min (RT:+10~+30℃)
Precooling temperature range	(-10)℃~ (-70)℃
Low temperature tank cooling time	RT~-70℃≤50min (RT:+10~+30℃)
Temperature fluctuation	±1.0℃
Temperature uniformity	±2.0℃
Throttle conversion time	≤5S
Impact recovery time	(-40)℃~(+150)℃≤5min
Heating system	Fin-type radiating tube-shaped stainless steel electric heater 1, high temperature tank 9KW 2, low temperature tank 6KW
Compressor	Original imported French "Taikang" brand fully enclosed compressor
Condenser	Water-cooled condensing agent
Evaporator	Multi-stage automatic load capacity adjustment of bullying fins
Expansion valve	Danvers imported original components from Denmark
Refrigerant	The latest environment-friendly refrigerant R404A imported from USA

Part of accessories display

Environmental Climatic Cool And Heating Thermal Shock Testing Chamber

Company profile

BOTO GROUP Ltd. is a private enterprise integrating r&d, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.
