Programmable Constant Temperature Humidity Test Chamber/High-low Temperature Test Chamber Manufacturer
This test equipment is suitable for:
Electrical, electronic products, components, components and materials are stored in high and low temperature environments
Adaptability tests for storage, transportation and use.
The following actions are prohibited:
* Testing or storage of flammable, explosive, volatile materials
* Testing or storage of corrosive substance samples
* Testing or storage of biological samples
* Testing or storage of samples of strong electromagnetic emission sources
* Testing or storage of radioactive material samples
* Testing or storage of highly toxic substances
* Testing or storage of specimens that may cause flammable, explosive, volatile, highly toxic, corrosive and radioactive materials during testing or storage
Programmable Constant Temperature Humidity Test Chamber/High-low Temperature Test Chamber Manufacturer:
| Model | BT-T-80 | BT-T-150 | BT-T-225 | BT-T-408 | BT-T-800 | BT-T-1000 | | (A~D) | (A~D) | (A~D) | (A~D) | (A~D) | (A~D) | | Inside size WxHxD (cm) | 40x50*40 | 50x60x50 | 50x75x60 | 60x85x80 | 100x100x80 | 100x100x100 | | Humidity deviation | ± 2.5% RH | | Temperature range | -70 degree ~ +100(150) degree | | (A:-40 degree B:-50 degree C:-60 degree D:-70 degree) | | Humidity range | 20%~98%R.H. | | Temperature fluctuations | ± 0.5 ℃ | | Temperature deviation | ± 2.0 ℃ | | Heating / cooling time | About 3.0/min(heat), about 1.0/min(cool) | | Inside material | Stainless steel SUS 304 # | | Insulation material | High-temperature high-density amino acid ethyl ester foam insulation materials, | | Program capacity | (touch type)
1. Program: 10 groups maximum
2. Number of segments: up to 120 segments
3. Number of cycles: maximum infinite loop | | Protection | 1. Fault alarming, showing the reason of fault and how to solve the problem
2. Power failure protection function
3. Upper and lower temperature protection function
4. Calendar timing function (automatic start and automatic stop operation)
5. Self-diagnosis function | | Power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz
| |

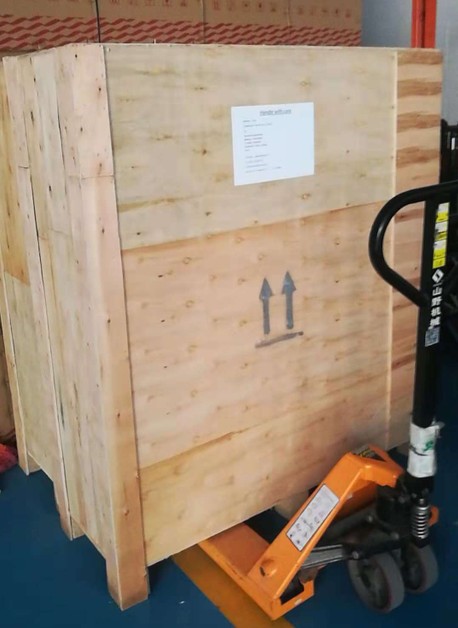

Packing & Shipping
