Brand Name : BOTO
Model Number : BT-E705-8
Certification : CE ISO
Place of Origin : China
MOQ : 1set
Price : Negotiated
Payment Terms : L/C, T/T
Supply Ability : 100 Set/Sets per Month
Delivery Time : 1-15 days,to be negotiated
Packaging Details : Wooden case
Power : Electronic
Temperature Range : -50℃ To +100℃
Humidity Range : 40% To 98% Rh
Dimension (Internal) (w x d x h) : 1500 x 1500 x 3000 Mm
Dimension (External) (w x d x h) : 2850 x 1700 x 3200 Mm
Accuracy : Temp. ±1c, Humidity ±2.5%Rh
Interior Walls : Stainless Steel 304
Exterior Walls : Cold Rolled Stell Plate With Baking Finish
Viewing Window : Multi Pane Glass Window Size

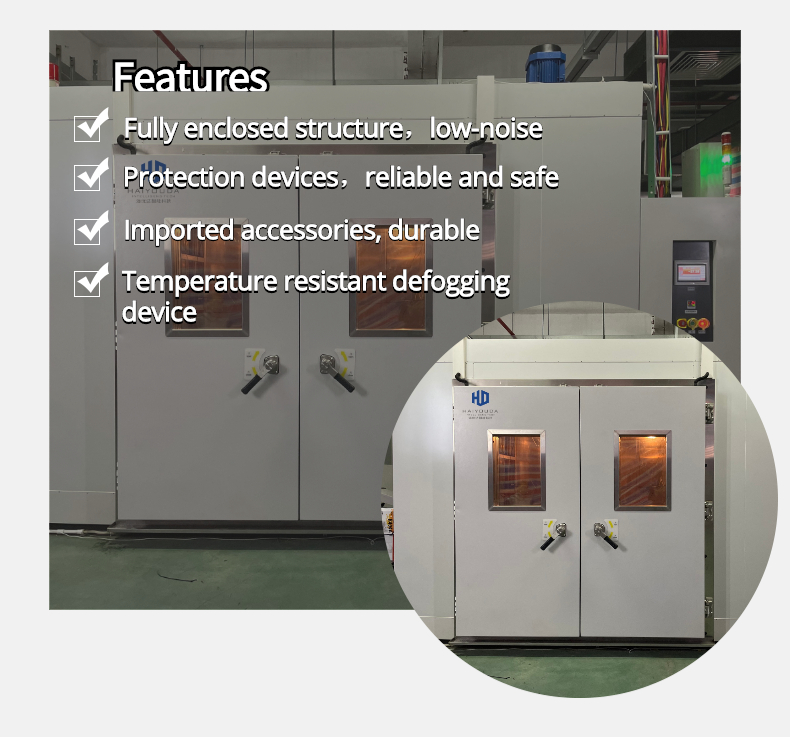

CE Approved Paint Type Automatic Programmable Walk-in Test Machine Climatic Test Chamber for Battery Test
00:2
Model | HUD-E705-8 |
Temperature Range | -50c To +100c |
Humidity Range | 40% To 98% Rh |
Dimension (Internal) (w x d x h) | 1500 x 1500 x 3000 mm |
Dimension (External) (w x d x h) | 2850 x 1700 x 3200 mm |
Ramp | Variable, Temp. 0~5c / Min & Humidity 0~5%/Min In Average, No Load |
Accuracy | Temp. ±1c, Humidity ±2.5%Rh |
Interior Walls | Stainless Steel 304 |
Exterior Walls | Cold Rolled Stell Plate With Baking Finish |

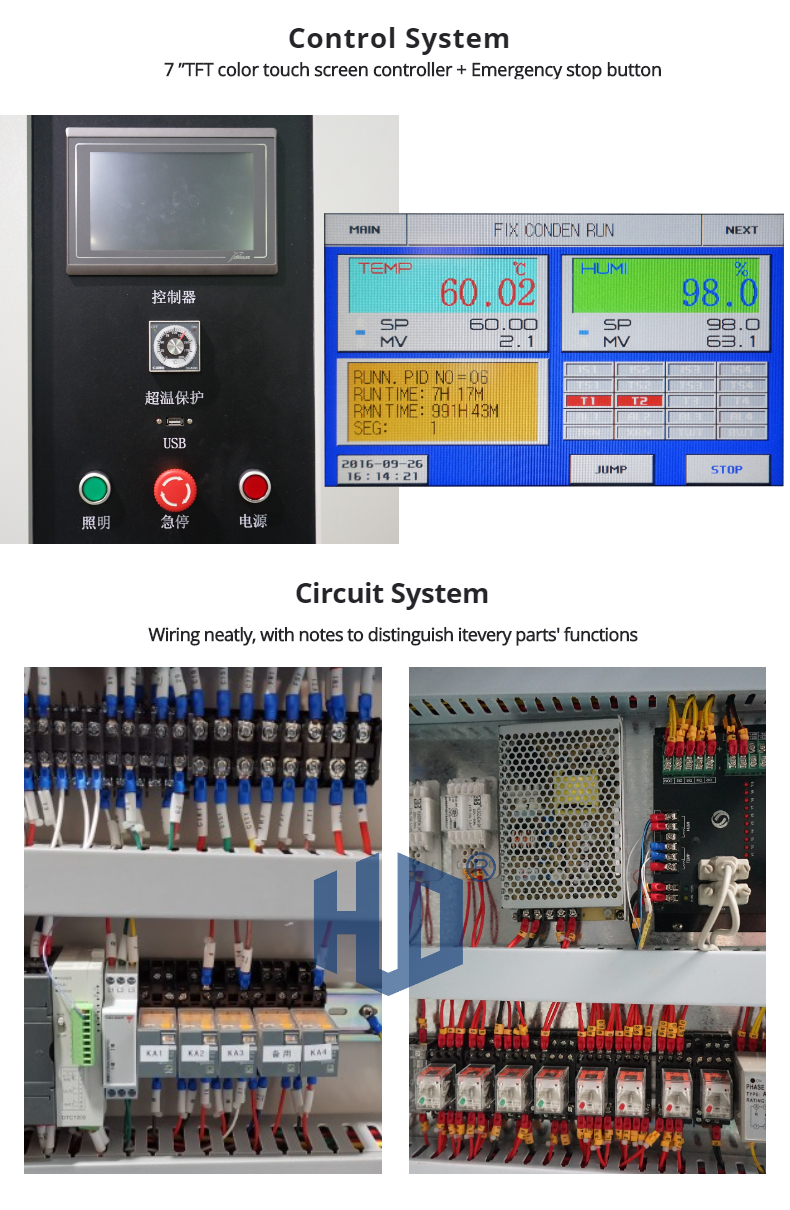

Temperature & Humidity Measurement And Controller | 32 Bit Control And Monitoring System. Interface Facility With Rs232 Programmable Temp. Humid. Controller |
Viewing Window | Multi Pane Glass Window Size |
Port Holes | 50 Mm Diameter For Wire Routing |
Power Supply Requirement | Three Phase, Ac380 v ± 10 %, 50 Hz |
Sound Pressure Level | Sound Pressure Level |

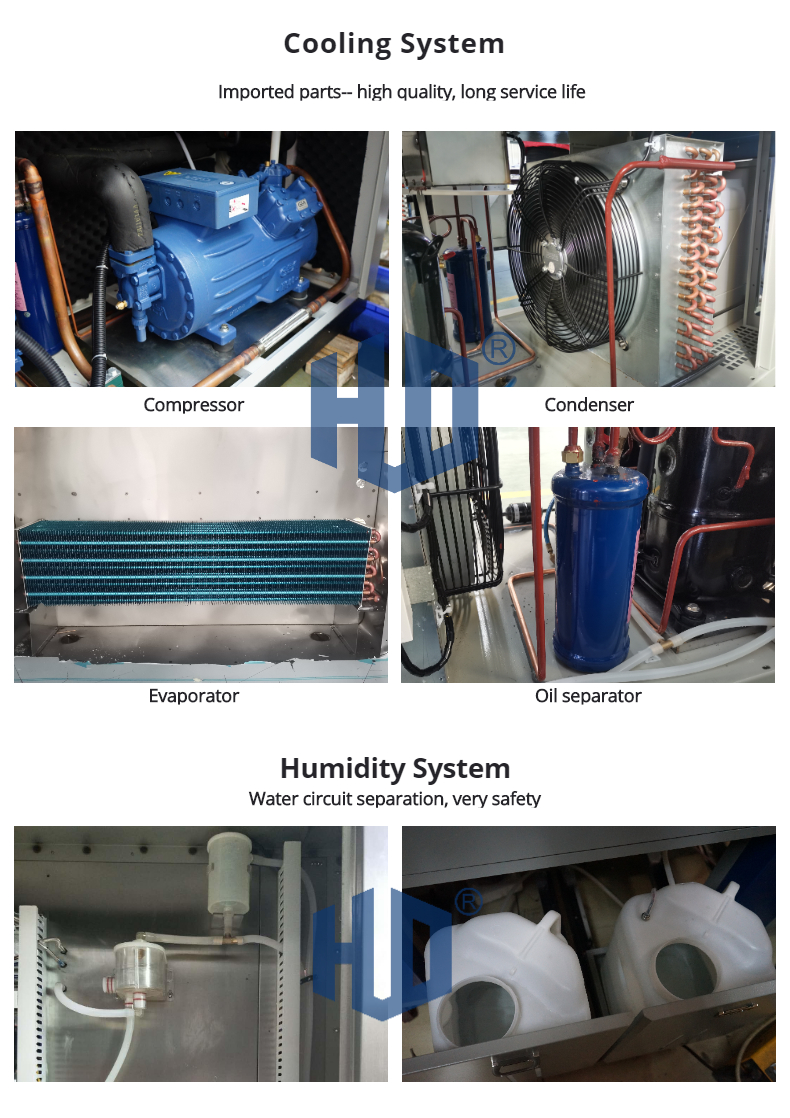

Condenser Cooling | Water Cooled |
![]() |
CE Approved Paint Type Automatic Programmable Walk-In Test Machine Climatic Test Chamber For Battery Test Images |
