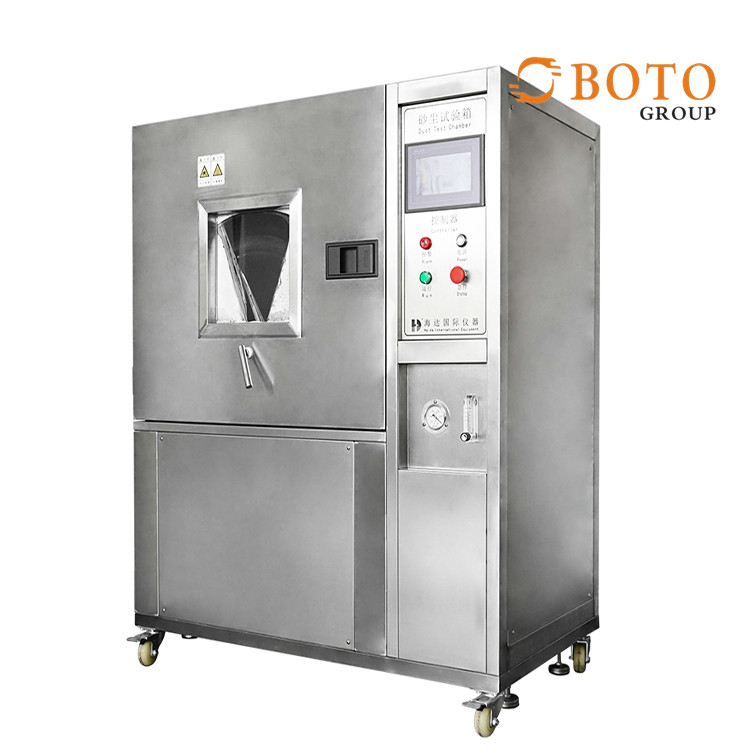

High Sealing And Wing Speed Low Noise Battery Dust Test Chamber Environmental Chamber

Name: High Sealing And Wing Speed Low Noise Battery Dust Test Chamber Environmental Chamber
Brand: BOTO
Price: 2000 USD

Brand Name : BOTO

Model Number : BT-E706

Certification : CE ISO

Place of Origin : Shanghai,China

MOQ : 1 SET

Price : 2000-4200USD

Payment Terms : L/C, T/T

Supply Ability : 1000set/month

Delivery Time : 25 work days

Packaging Details : wooden case

chamber material : SUS304 Stainless steel

controller : PLC touch screen

fan : centrifugal fan

Talcum powder amount : 2kg/ m³

Door : Left open door with tempered glass door

Vacuum pump capacity : 60-600 L/H

Customized support : OEM, ODM

Contact Now

High Sealing And Wing Speed Low Noise 60-600 L/H Dust Test Chamber Environmental Chamber

Product Description

CHAMBER DESIGN FEATURES

1. Chamber material: SUS#304 stainless steel;

2. Transparent window is convenient to observe specimen during testing;

3. Blow fan adopts stainless steel shell, high sealing and wing speed, low noise;

4. Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.

High Sealing And Wing Speed Low Noise Battery Dust Test Chamber Environmental Chamber

STANDARD FEATURES

Item	Specification
Internal dimension	800W800D800Hmm
External dimension	1300W1000D1700Hmm
Test sample	Size W20cm- L30cm-D15cm, weight 0.5kg
Chamber material	SUS304 Stainless steel
Specifications of square mesh sieve	Mesh hole 75um, mesh metal wire diameter 50um
Talcum powder amount	2kg/ m³
Airflow speed	No more than 2m/s
Door	Left open door with tempered glass door
Controller	PLC Touch Screen controller, programmable to set as below cycle: a. Blowing dust time (Stop/Blow) m/s b. Cycle time: can be adjusted c. Pre-set test time: 0s ~99m99s
Vacuum system	Pressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump
Vacuum pump capacity	60-600 L/H
Fan	Centrifugal fan
Safety protection devices	Meter over-temperature function, Phase shortage protection, Power short-circuit protection
