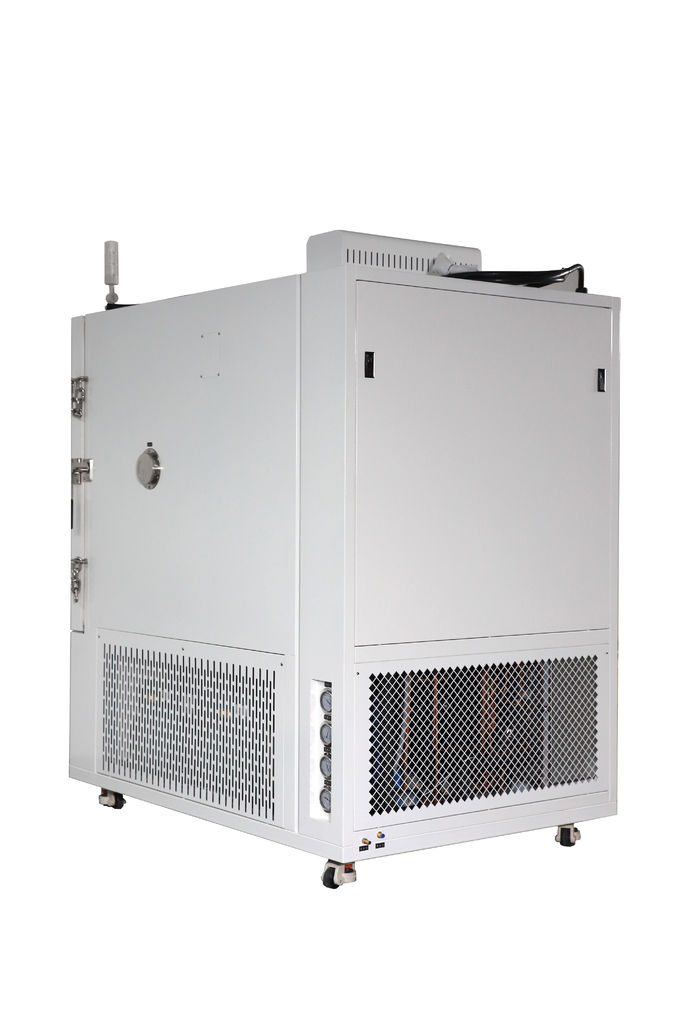

Fast heat and cooling cycling chamber Rapid Temperature test chamber Environmental Test Chambers
Standard
Comply with MIL STD GB JIS JEDEC IEC ISO and other test specifications.
Use
Rapid temperature change test box is also called rapid temperature change test box, used to check the performance of materials in a variety of environment equipment and test a variety of materials heat resistance, cold resistance, dry resistance, moisture resistance. Mainly used for national defense industry, aviation industry, automotive parts, electronic parts, plastic industry, food industry, pharmaceutical industry, and related products only research and development, quality management engineering test specifications.
Features
1. The international famous brand imported compressor and refrigeration accessories are adopted to ensure the stability of the refrigeration system;
2. Special air circulation design, good uniformity of temperature and humidity distribution;
3. Full series of imported microcomputer controller, color touch screen, Chinese and English system, can do Cheng Cheng value function, USB can be exported test data;
4. Can show the cause of the fault, easy to eliminate;
5. Super silent design, effectively reduce the noise of equipment operation;
6. Multiple safety protection: refrigerant high voltage protection, compressor overload protection, current overload protection, overtemperature protection, leakage protection. It can ensure the safety of samples and more effectively protect the overload operation of equipment components, greatly reduce the incidence of equipment failure, and make the operation of equipment more stable and reliable.
NO.1 Intelligent Control
NO.2 Multiple Windows
NO.3 Proprietary Technology
Spec
| Model | dry heat | B-T-80(A~E) | B-T-120(A~E) | B-T-225(A~E) | B-T-504(A~E) | B-T-1000(A~E) |
| damp heat | B-TH-80(A~E) | B-TH-120(A~E) | B-TH-225(A~E) | B-TH-504(A~E) | B-TH-1000(A~E) |
| Internal Dim(cm) | 40x50x40 | 45x60x45 | 60x85x80 | 70x90x80 | 100x100x100 |
| External Dim(cm) | 75x203x203 | 80x208x208 | 95x243x243 | 105x243x243 | 135x263x263 |
| Relative Humity(Only damp heat | 20%~98%RH(10%~98%RH) |
| Temp Range | ’-70℃~180℃(100℃)
A:0℃ B:-20℃ C:-40℃ D:-60℃ E;-70℃ |
| Heat-up time(min) | 1℃~15℃/min(linear and non-linear) |
| Pull-down time(min) | 1℃~15℃/min(linear and non-linear) |
| Temp Fluctudtion | ±0.5℃ |
| Temp Uniformity | ±1.0℃ |
| Temp Deviation | ±1.0℃/±3.0%RH |
| Interior | SUS#304Stainless steel plate |
| Enterior | Coating or SUS#304Stainless steel plate |
| Power Source | AC:220V/380V 50/60Hz |
| Power(KW) | Reference Technical Scheme |

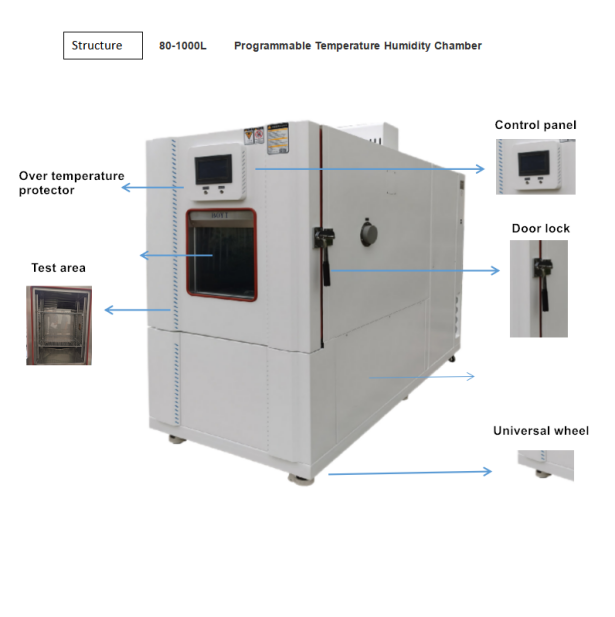

Product structure
PACKAGE&DELIVERY
1.Standard exported package: Internal anticollision protection, external export wooden box packaging.
2.Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
4.30days after confirming order,detail delivery date should be decided according to production season and order quantity.
Company Profile
BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.
Main equipment
- Constant Temperature and Humidity Test Chamber
- Salt Spray Test Chamber / Corrosion Cyclic Salt Spray Test Chamber
- UV Accelerated Aging Test Chamber
- Mini Environmental chamber / Desktop Environmental Test Chamber
- Walk in Constant Temperature and Humidity Lab
- High Temperature Chamber and Other Lab Test Equipment etc.
In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.
Main market
The factory has the ability to calibrate, and the customer can also designate a ISO 17025 accredited third-party organization to calibrate and issue a calibration report.
Production Process
Production Details
Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.
Certification
The certificate is valid until June 17, 2024
Cooperative partners
BOTO ADVANTAGE
Customers photos
Our Services
During the whole business process, we offer Consultative Selling service.
1) Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2) Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.
3) Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show production process.
After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
4) Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
