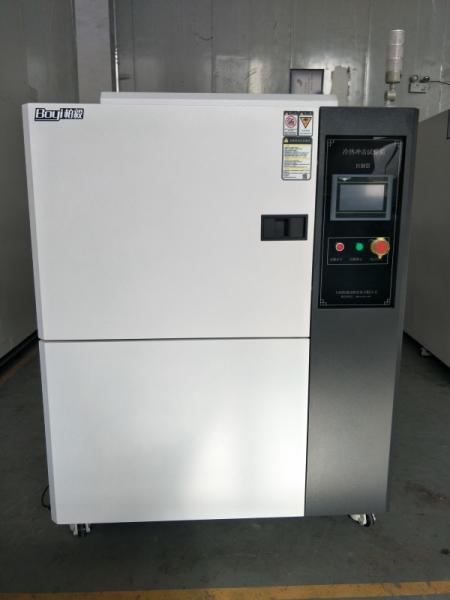

Semiconductor SUS304 Cold Temperature Chamber For Defense Industry

Brand Name : BOTO

Model Number : B-TCT-401

Certification : ISO GB JIS

Place of Origin : CHINA

MOQ : 1SET

Payment Terms : Western Union, L/C, T/T

Supply Ability : 10000SETS/year

Delivery Time : 25~30days

Packaging Details : PLY-WOODEN-CASE

Low Temp Range : -10°C ~-60°C

Test Temp Range : -40°C ~150°C

High Temp Range : 80°C ~ 200°C

Recovery time(min) : Within 3 minutes

Interior : SUS#304 Stainless steel plate

Exterior : Coating or SUS#304 Stainless steel plate

Contact Now

Two Box-Type Hot And Cold Impact Chamber Semiconductor Materials Test Chamber Heating Up Testchamber

Product Description

The two-box thermal shock test box is composed of two boxes: a low temperature zone and a high temperature zone. The product is placed in a basket and circulates in the high and low temperature zone to achieve the effect of thermal shock. The product is moving during the whole process.

Mainly used in the defense industry, aerospace industry, auto parts, electronic parts, plastics industry, food industry, pharmaceutical industry and other industries, often used in the testing of electronic parts, semiconductors, metals, chemical materials, etc.

Features

1. Adopt touch-sensitive color man-machine interface + PLC + imported temperature controller.
2. The number of cycles and defrosts can be set.
3. The abnormality and failure point display instructions, and are reminded by simple troubleshooting teaching.
4. Comprehensive system safety protection and power failure memory.
5. Multiple safety protection: refrigerant high pressure protection, compressor overload protection, current overload protection, over temperature protection, leakage protection.
6. Air cooling or water cooling can be selected according to customer requirements.

Specification

Model B-TCT-401 B-TCT-402 B-TCT-403 B-TCT-501 B-TCT-502 B-TCT-503 B-TCT-601 B-TCT-602 B-TCT-603
Internal Dim(CM)
(W*H*D)
30×30×30 40×40×40 50×50×50 30×30×30 40×40×40 50×50×50 30×30×30 40×40×40 50×50×50
External Dim(CM)
(W*H*D)
118×185×180 128×195×190 138×205×200 118×185×180 128×195×190 138×205×200 118×185×180 128×195×190 138×205×200
Sample Weight 5KG 10KG 20KG 5KG 10KG 20KG 5KG 10KG 20KG
Low Temp Range -10°C ~-60°C -10°C ~-70°C -10°C ~-80°C
Test Temp Range -40°C ~150°C -55°C ~150°C -65°C ~150°C
High Temp Range 80°C ~ 200°C (various specifications applicable)
Recovery time(min) Within 3 minutes
Interior SUS#304 Stainless steel plate
Exterior Coating or SUS#304 Stainless steel plate
Power Source AC:380V 50/60Hz
Water Supplying Way 13.5KW 15KW 19KW 13.5KW 15KW 19KW 15KW 19KW 22KW

Production Process

Semiconductor SUS304 Cold Temperature Chamber For Defense Industry

Semiconductor SUS304 Cold Temperature Chamber For Defense Industry

Semiconductor SUS304 Cold Temperature Chamber For Defense Industry

Package&Delivery

1.Standard exported package: Internal anticollision protection, external export wooden box packaging.

2.Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3. Responsible for the damage during the shipping process, will change the damage part for you for free.

4.30days after confirming order,detail delivery date should be decided according to production season and order quantity.


Semiconductor SUS304 Cold Temperature Chamber For Defense Industry

FAQ

1. How can we guarantee quality?
Continuous testing is performed after production is completed to ensure product stability.
All parts come from manufacturers of world-renowned brands.

2.What can you buy from us?
Checkweigher,Packing machine,CNC machine

3. why should you buy from us not from other suppliers?
We are a manufacturer with ISO9001, CE international certificates,
*12+ years of production experience
* 10+ years of foreign trade experience
*10+ national technology patents
*Exported more than 1,000 units without receiving complaints from customers

4. what services can we provide?
warranty:12 months free warranty, life-long maintenance.
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Japanese,Chinese,
