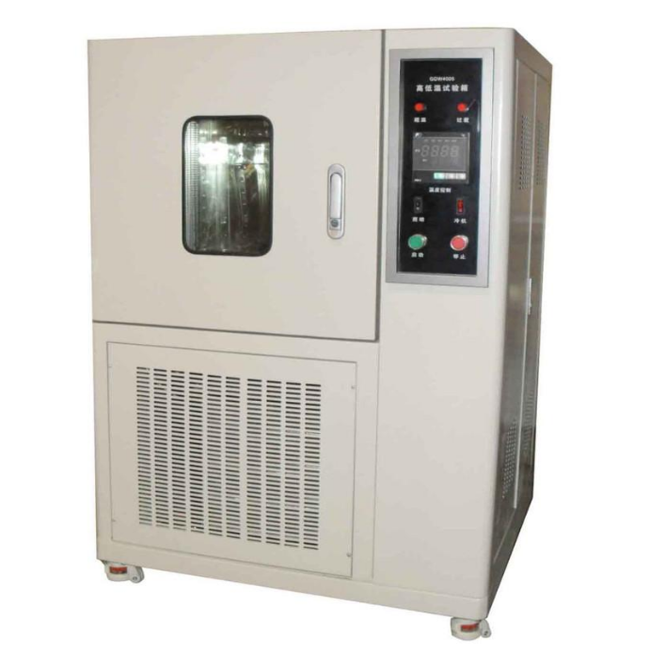

Mini Programmable Lab Constant Temperature Humidity Test Chambers
The temperature and humidity test chamber can accurately simulate the complex natural environment of low temperature, high
temperature, high humidity, low temperature and low humidity, which is suitable for the product detection of plastics, electronics,
food, clothing, vehicles, metals, chemicals, building materials and other industries.
Technical parameter:
| Performance | Temperature range | A:-20℃~150℃ B:-40℃~150℃ C:-60℃~150℃ D:-70℃~150℃ E:-70℃~180℃ Customized temperature is available |
| Humidity range | 20~98%R.H Customized humidity is available |
| Fluctuation / uniformity | ±1.5℃/±2℃ |
| Humidity deviation | ±3%R.H |
| Heating rate | About 3.0℃/min |
| Cooling rate | About 0.7~1.0℃/min |
| Control system | Controller | "Temi" brand programming temperature instrument, HD real color LCD touch screen |
| Accuracy range | Setting accuracy: temperature 0.1 ℃, humidity 1% R.H, Indication accuracy: temperature 0.1 ℃, humidity 1% R.H |
| Temperature and humidity sensor | Platinum resistor PT100Ω/MV |
| Heating system | Fully independent system, Ni Cr alloy electric heating heater |
| Humidification system | External isolation type, all stainless steel shallow surface evaporation humidifier |
| Dehumidification system | Adopt the dew point temperature laminar contact dehumidification method of evaporator coil |
| Water supply system | Humidification water supply adopts automatic control, and can recover residual water, save water and reduce consumption |
| Refrigeration system | French "Tecumseh" totally enclosed air-cooled single-stage or cascade compressor refrigeration mode |
| Circulation system | Motors with low noise and temperature resistance - multi blade centrifugal fans |
More Details:
Features:
1. The constant temperature and humidity test box is mainly composed of control panel, distribution panel, insulation layer, air
supply fan, heater, humidifier and refrigeration unit. The main specifications can be divided into 6 standard sizes and 10
specifications under different conditions.
2. The controller can be connected to the computer through LAN interface. Users can design programs on the computer screen,
collect test data and records, call program execution, remote control machine switch and other functions.
3. The use of multi-wing air supply fan strong air circulation, to avoid any dead angle, so that indoor temperature and humidity
distribution is uniform.
4. Complete safety protection device, if abnormal conditions occur, the controller screen will automatically display the fault
status, cut off the power switch, and provide troubleshooting methods.
PACKAGE&DELIVERY:
1. Standard exported package: Internal anticollision protection, external export wooden box packaging.
2. Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
4. 15-20days after confirming order,detail delivery date should be decided according to production season and order quantity.
Company Profile
BOTO GROUP is a professional manufacturer of various kinds of testing equipment over 20 years. BOTO products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
BOTO deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.
Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.
Main market
The factory has the ability to calibrate, and the customer can also designate a ISO 17025 accredited third-party organization to calibrate and issue a calibration report.
Production Process
Production Details
Certification
The certificate is valid until June 17, 2024
Cooperative partners
BOTO ADVANTAGE
Customers photos
OUR TEAM
FAQ:
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
